Reduce field inspections
Gain remote visibility while reducing repeated manual checks, travel, and specialized testing equipment.
Remote cathodic protection monitoring
Real-Time Corrosion Monitoring
Remote visibility and proactive control for cathodic protection systems.

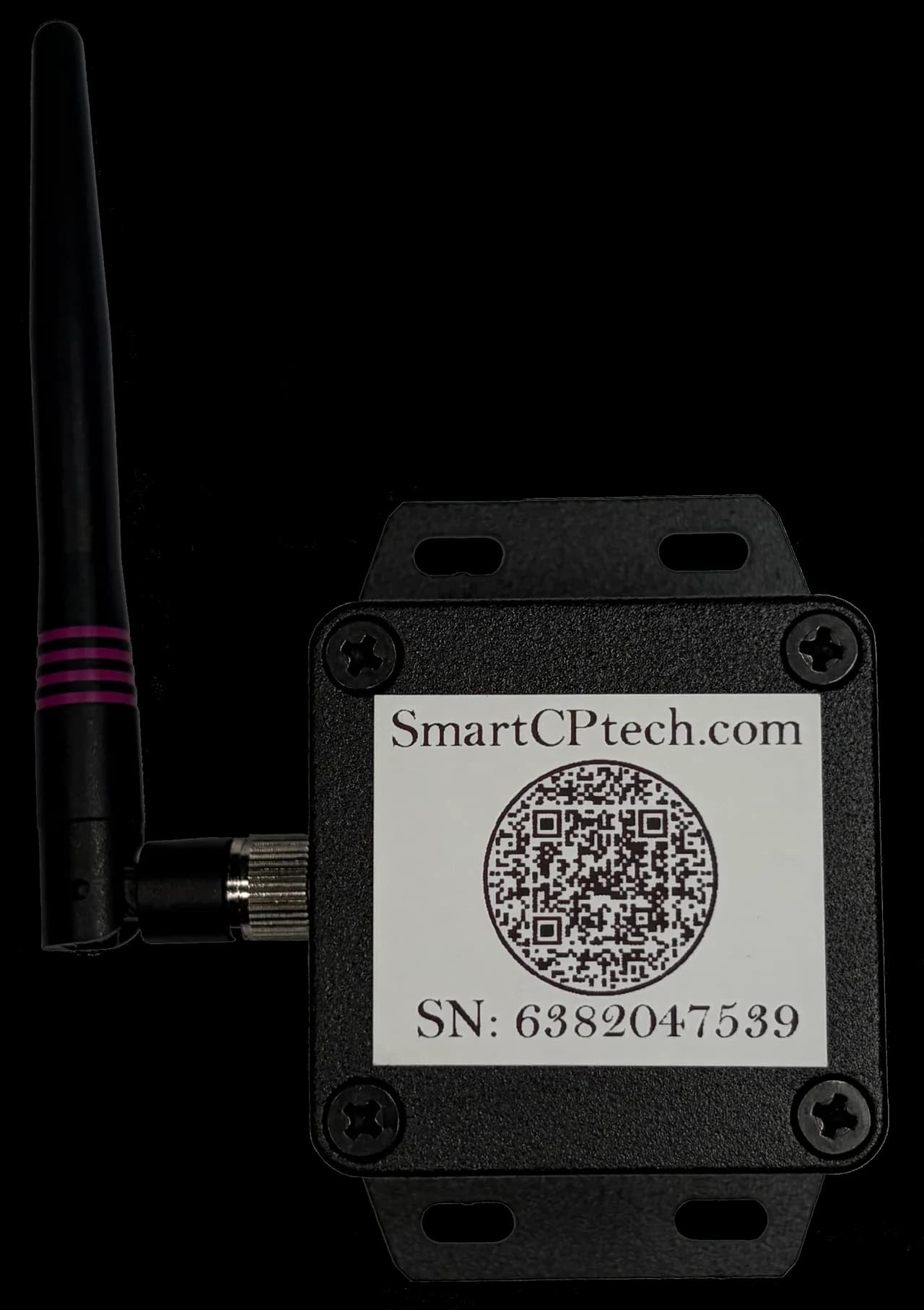

Monitor critical assets with a compact corrosion sensor designed to reduce manual inspections, travel, and specialized testing equipment.
0110 yearsBattery life
0210 minInstallation
034 anodesCurrent output control
04IP66Rain, snow and UV resistant
Why SmartCPtech
See issues earlier. Intervene with confidence.
Continuous remote monitoring gives operations teams actionable visibility into critical assets while reducing time spent on repeated field inspections.
Understand asset condition
Monitor critical assets in real time and support advanced corrosion potential analysis.
Investigate stray current
Use continuous field data to support stray current investigation and informed intervention.
Improve CP reliability
Monitor the remaining life of cathodic protection systems and act before issues escalate.
Technical highlights
Compact hardware for demanding environments.
The most relevant specifications are available at a glance. Open the datasheet for a complete product reference.
3-digit corrosion potential measurement with high accuracy and impedance
Simultaneous control of 4 anodes current output
Instant-off measurement capability
Integrated moisture and temperature sensors
Easy battery replacement with standard CR123
Operating temperature: -40°C to +65°C (-40°F to +150°F)

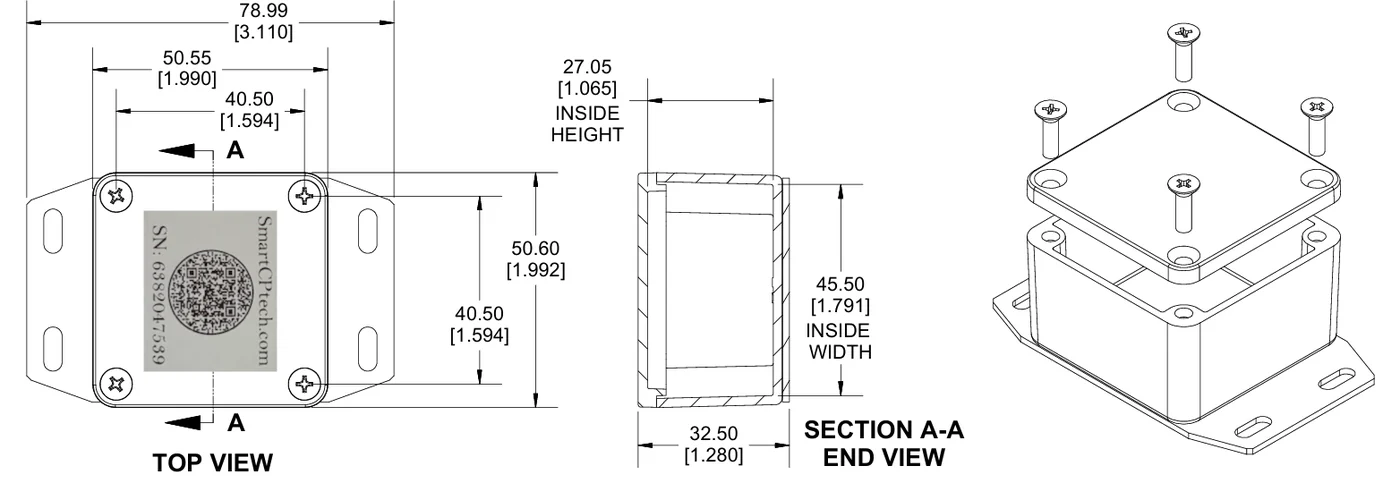

Compact 78.99 × 50.60 × 32.50 mm enclosure
Lightweight 150 g design
Industry applications
Protection across asset-heavy industries.
SmartCPtech supports demanding environments wherever corrosion monitoring and cathodic protection reliability matter.
Energy & Utilities
Oil & Gas
Water & Wastewater
Transportation
Marine & Ports
Telecommunications
Renewable Energy
Construction & Infrastructure
Chemical & Petrochemical
Defense & Aerospace
Agriculture
Smart Cities & Municipalities
Compact enclosure
Designed for fast field installation.
A lightweight enclosure and practical mounting format help keep installation straightforward.
